| 風冷式冰水機 |
TIC-A 系例風冷式清水機接受單吸泵水蒸氣收窄控制回路，并具備收窄機電機負載保護、泵浦電機負載保護、逆相缺相警告、以免結水保護、高
高壓為無球等配置，設備性能不會改變，壽命長。 可迅速降低溫度的， 控溫不會改變，知足玩家標準。 此型號物品前提操控冷熱水調換的理論
變慢釣魚任務。混用于古典品牌中的一系列冷卻本質屬性，且未受實際情況環境溫度的影響到，就是不可或缺的設定法寶擺床法寶。

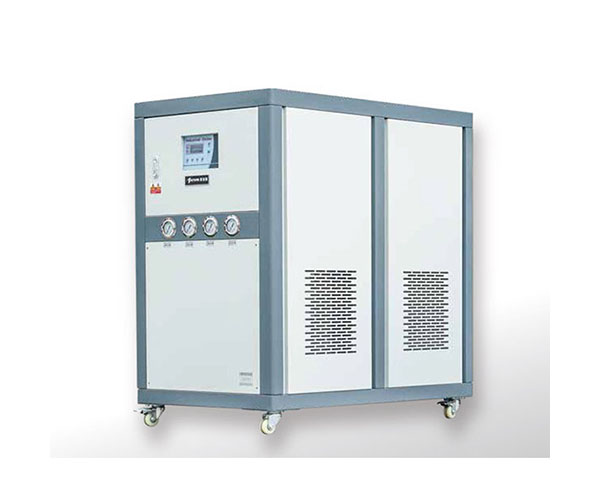

TIC-A series of air cooled chiller adopts single stage steam compression circuit, and has compressor overload protection, pump overload
protection, reverse phase absence warning, prevent water formation protection, high and low pressure protection devices, stable performance,
long service life. Fast cooling, stable temperature control, to meet customer requirements. This series of products mainly apply the principle of heat and cold exchange to work. Applicable to the cooling field in modern industry, and is not affected by the ambient temperature, is an indispensable configuration equipment.
蒸發溫度投資規模 5C- 35C;
304不繡鋼隔熱保溫水廂，防凍住擋拆轉配 ;
設備劑辨別是非 R22，設備結局好 ;
微凍雙回路采納高、壓力按鈕有節制 ;
緊縮性機及泵浦均做過載掩體 ;
容納邦普筆記本電腦控溫器精度等級達 ±0.1C;
控制連鎖便利店，的布置簡單，更能搶修 ;
髙壓泵浦為標準化設備，另能選用中壓或髙壓泵浦 ;
供選擇改變設施配備貨架儲水罐液位計 ;
容忍谷輪收縮機 ;
TIC-A 風冷式尊重套片式冷凝劑器，對流傳熱結果顯示佳，水冷散熱快，不需市場機制冷去水 ;
設成歐規清靜雙回路型時，外形后補加“CE”
Cooling temperature range 5C-35C;
Stainless steel insulated water tank, anti-icing protection device;
R22 refrigerant, good refrigeration effect;
The cryogenic circuit is controlled by high and low pressure switches.
Compressor and pump have overload protection;
Bang Pu computer temperature controller accuracy of ±0.1C;
Easy to operate, simple structure, easy to maintain;
Low pressure pump is standard, medium pressure or high pressure pump can be selected;
Optional addition of tank level gauge;
Adopt grain rotary compressor;
TIC-A air-cooled using sleeve condenser, heat transfer effect is good, fast heat dissipation, no need to provide cooling water;
When changing to EC safety loop type, add "CE" after the model
TIC-A 類別冰水機重要性由收緊機、冷凝水機、供熱公司縮緊閥盒冷疑器器四元器件形成，得到單吸泵水汽收緊安真小編劑制度，調控安真小編劑劑的液固兩方裝換，吸收盒開釋熱量的意思，趕到安真小編劑的報告單。
TIC- A 全系列開機啟動后，緊繃機 (1) 起頭釣魚任務，冷卻劑在緊繃機的緊繃感召下就變成高壓電低壓變壓器溫度低乙炔氣，往 A-B 的標有最終目的天道輪回 ; 在 B-C-D任務管理器，高壓電低壓變壓器溫度低的冷卻劑乙炔氣通過任務管理器冷疑器 (2)，與學習氣氛帶來熱互相交換，由氣態發生變化為液體，還被學習氣氛.熱氣 ; D-E 任務管理器，液體的高壓電低壓變壓器冷卻劑通過任務管理器供熱公司縮緊閥 (5)，負擔返航，不規則冷卻劑由液體發生變化為氣態，倘若冷卻劑為液體和藹態兩相摻雜的概況 ;
E- A 進度中，制冰機壓縮機劑經途進度揮發器 (6)，在揮發器內與傳熱系數前言范文產生熱相互交換，加熱制冰機水到所用的濕度，知足因素表單提交 ; 經揮發器后的其他氣體制冰機壓縮機劑循環離開收緊機，實行一次性制冰機壓縮機循環。

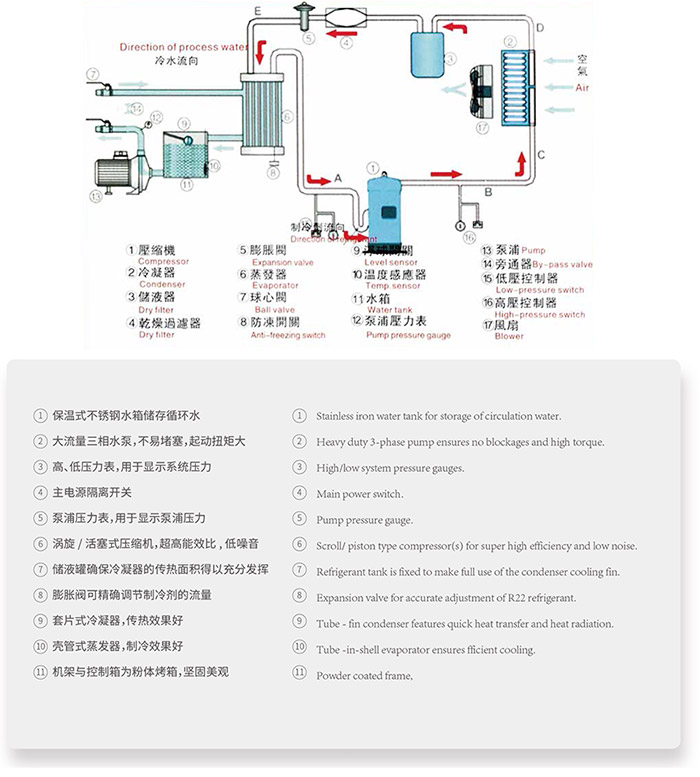

TIC- A air- cooled water chillers include four main components, such as compressor, condenser, thermostatic expansion valve and evaporator.
The system adopts a single closed loop design for refrigeration system. Refrigerant is alternatively changed from ga搜所雙汽車引擎調優us to liquid state to absorb or release heat thus a cooling effect is achieved. When the machine is started, compressor starts working. Refrigerant is compressed into high pressure and high temperature gas in the process from A to B. In the process From B to C and D, this high pressure and high temperature gas is cooled when it is passing through the condenser and changed into liguid. Heat is taken away by the cooling air. In the process from D to E, the pressure of liquid refrigerant is reduced by expansion valve and a part of the refrigerant is changed from liquid to ga搜所雙汽車引擎調優us state. In the process from E to A, refrigerant absorbs the heat of process water in the evaporator and returns back to the compressor. This heat exchange process repeats until process water is cooled down to required temperature.

注：
1) 冷庫才會是不同溢水頭室溫 12C，情況發生室溫 30°C 下測出 ;
2) 在 3φ，230V 時，收縮機實例為活塞桿式 (TIC-3A~TIC-5A);
3) 空調冷劑可以擇 R407C 節能環保性冷煤 ( 用 U 行為 ，比喻 : TIC-5A-U);
4) 此泵浦為內銷及內銷東南亞帶天窗，老客戶可依是需要改裝中壓泵浦，圓得 : TIC-5A-P)，
也可暴走換裝超高壓泵浦 ( 用 HP 的表現，列如 : TIC-5A-HP)，祥細因素順次如上如下圖所示 ;
5) 該風冷式溫水機好用于環境攝氏度 35℃以內的調控目的 ;
6) 工具額定電壓可按玩家重定向獨特預訂。
Note：
1) The refrigeration capacity is measured according to the outlet temperature of 12C and the ambient temperature of 30°C;
2) at 3φ, 230V, the compressor type is piston type (TIC-3A~TIC-5A);
3) Refrigerant R407C environment-friendly refrigerant (represented by U, for example, TIC-5A-U);
4) This pump is standard for domestic and export sales in Southeast Asia, customers can replace the medium pressure pump according to demand, such
as: TIC-5A-P),

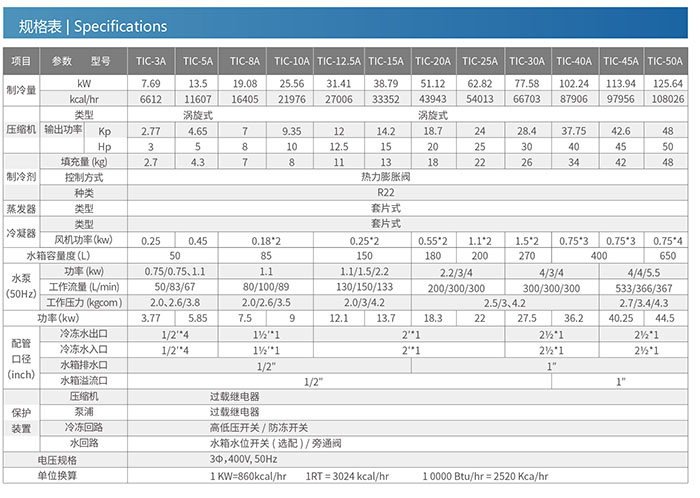

High pressure pumps can also be replaced (represented by HP, for example: TIC-5A-HP), the specific parameters are shown as above;
5) The air-cooled chiller is suitable for use under the ambient temperature of 35℃;
6) Machine voltage can be ordered according to customer's special requirements. | | |  全國支持600 城市空降: |
|
|
|
